CARM GH-ZLD FILTER

  • Mainly used in woodworking and printing industry
  • Exhaust power from 40 000 m3/h to several hundred thousand m3/h
  • Bag filter elements
  • Automatic filter medium regeneration
  • Minimum filter medium service life 20 000 hours
  • Filtration efficiency 99.99 % and higher
  • Smart controls system
  • explosive dust extraction

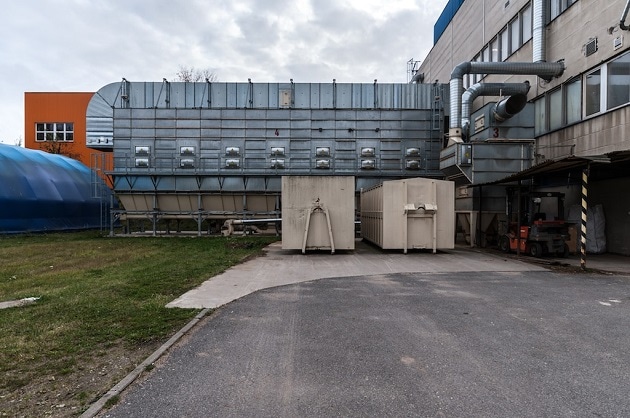

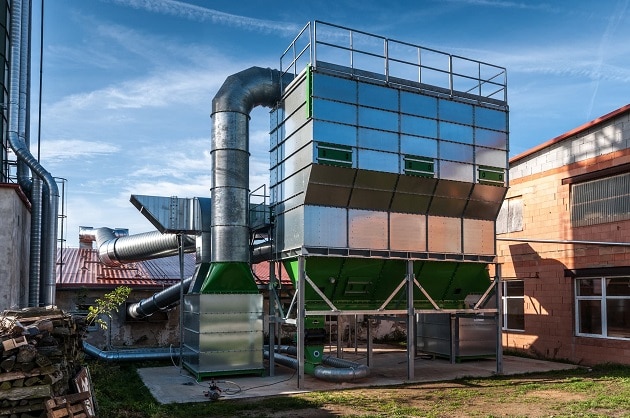

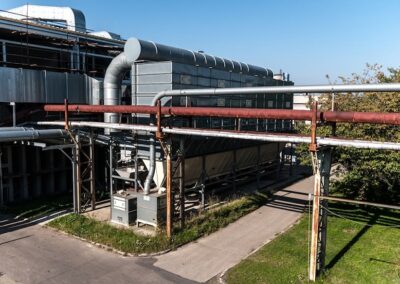

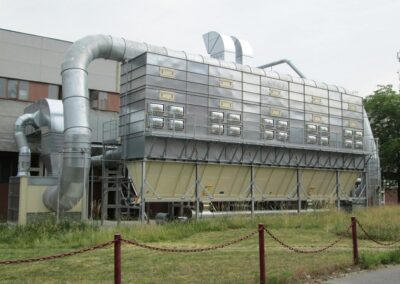

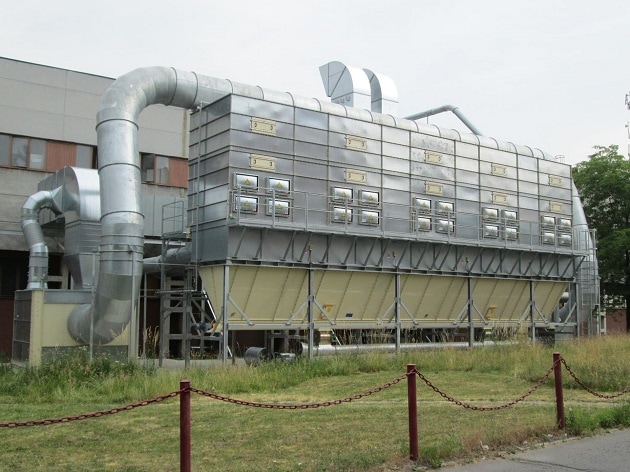

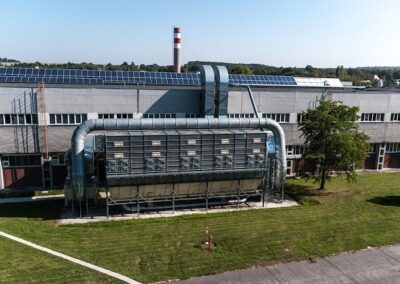

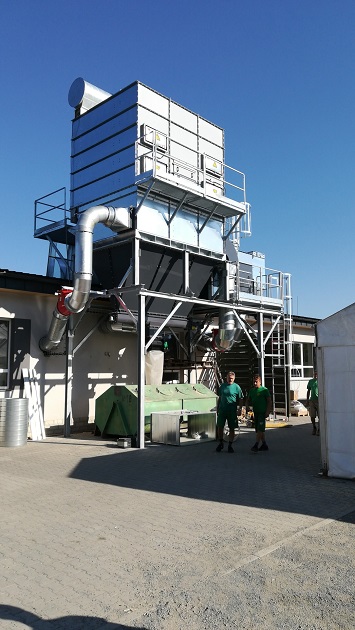

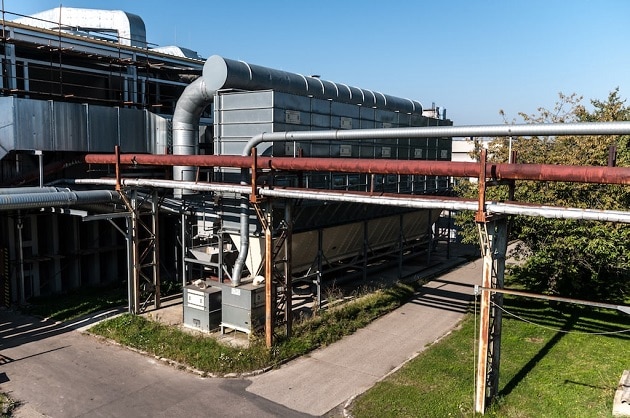

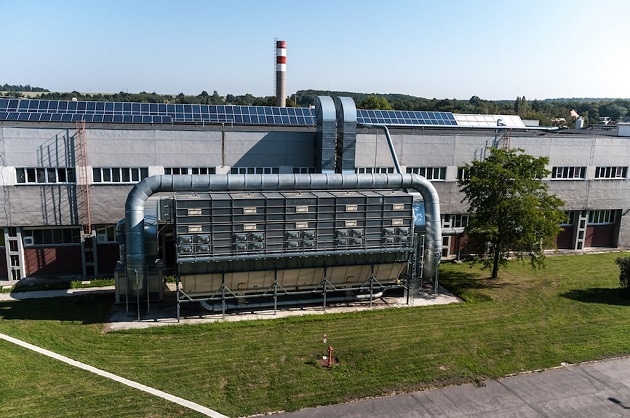

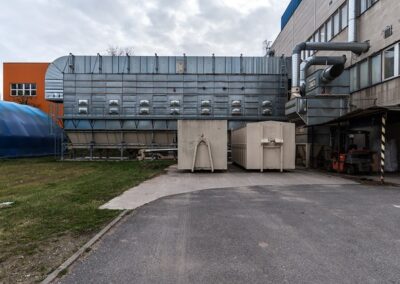

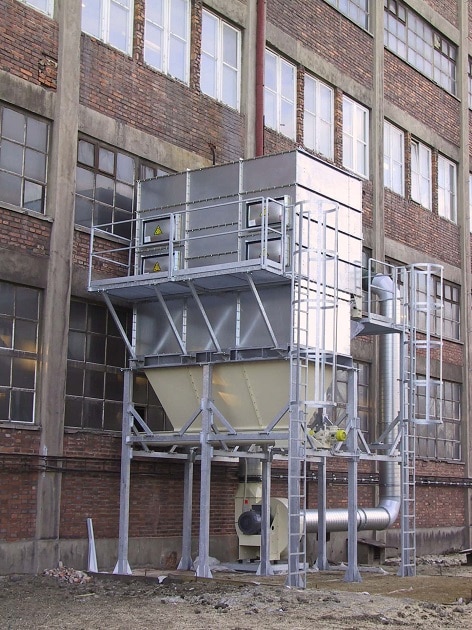

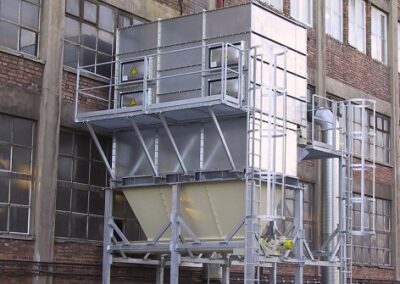

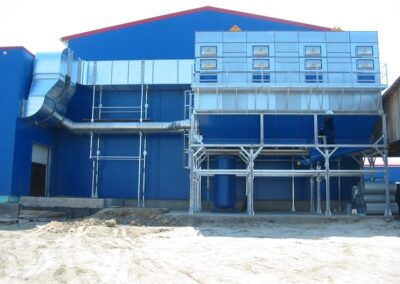

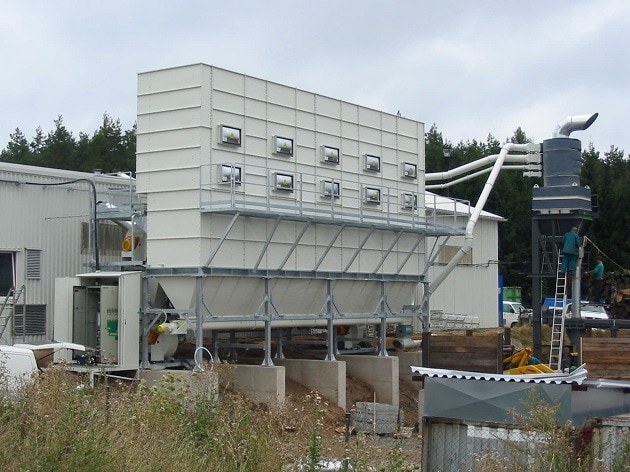

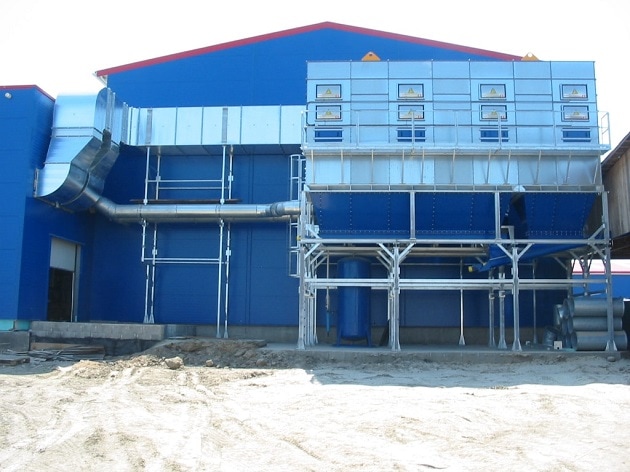

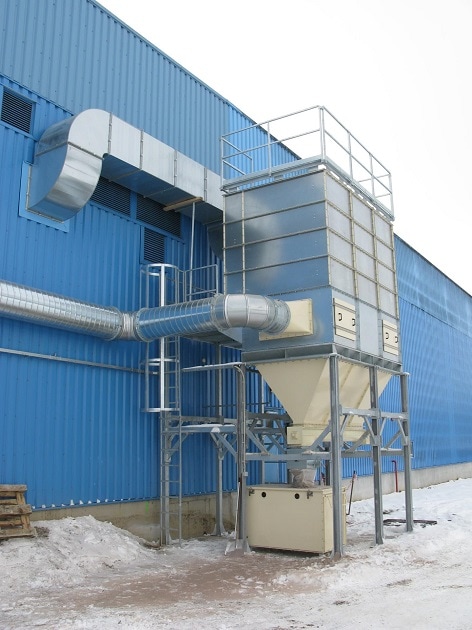

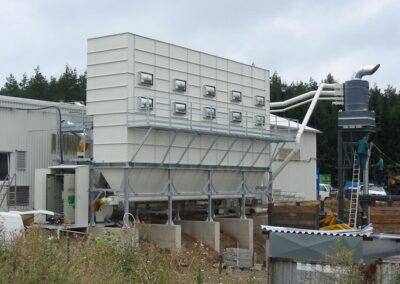

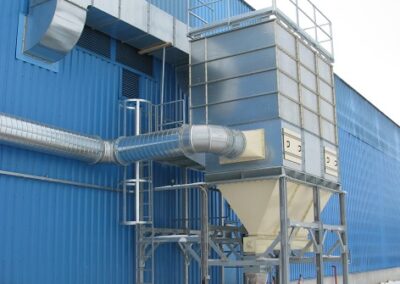

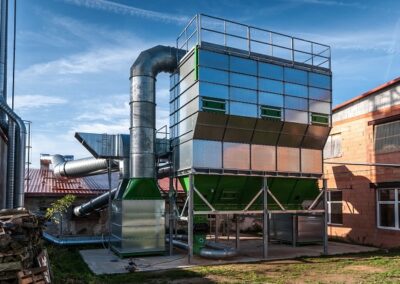

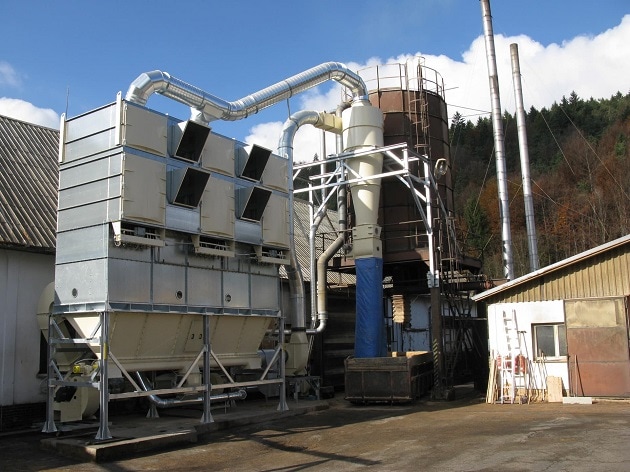

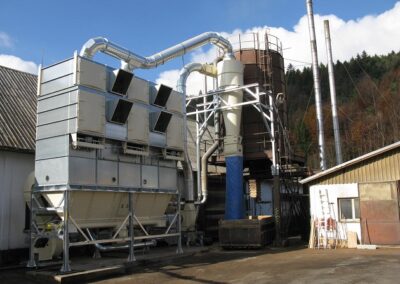

CARM GH-ZLD filter

CARM GH-ZLD is a stationary exhaust pressure filtration device with automatic filter medium regeneration using compressed air counter-flow. CARM GH-ZLD is specifically designed for central air extraction systems in woodworking and paper-processing industry. It is designed for extracting large volumes of air, with exhaust power from 40 000 m3/h to several hundred thousand m3/h.

Filter medium

CARM GH-ZLD filtration device is equipped with smooth filter bags made of microporous antistatic nonwoven fabric. The absence of dust deposits is a big advantage of smooth filter hoses.

CARM GH-ZLD Filter



CARM-GH-ZLD filter service life

We design our CARM GH-ZLD units with guaranteed filter medium service life of 20 000 hours without the need for manual cleaning.

Most common applications in central air extraction systems

CARM GH-ZLD is designed for heavy production processes in woodworking or printing industry. The bag filter is capable of continuous operation, even at heavy workload. Pocket filters in CARM GH-ZLD are used for extracting explosive dust.

CARM GH-ZLD filter power series

CARM GH-ZLD filters are designed in modular series, which enables them to produce exhaust power from 40 000 m3/h up to several hundred thousand m3/h. The filtering unit’s power depends on the number of modules and the power of preceding transport fans. The exhaust power of each fan can be regulated using frequency converter, depending on the actively equipped production technology.

Dust collection

The CARM GH-ZLD filtration unit is used for extracting large volumes of sawdust and dust, which is why it is equipped with high-capacity containers and briquetting or tamping pressing machines. Pneumatic sawdust transportation into a silo is possible.

Explosive dust extraction

CARM GH-ZLD units for extracting explosive dust are equipped with antistatic filter medium, explosion relieving measures or certified rotary feeder. Each explosive dust extraction unit has a different size of the relieving area, depending on the fire properties of the extracted dust.

Filtration unit design

We need to know the specific application, extracted air volume and other parameters such as spatial layout options, waste management possibilities, noise requirements etc. for designing your solution. Most commonly used in woodworking and paper-processing industry.

We will gladly help with your design – contact us.
